AXISVM CONFIGURATIONS
BASIC PACKAGES AND MODULES
CUSTOMIZABLE SOFTWARE CONFIGURATIONS
Thanks to the modular design of AXISVM, engineers are free to choose their own design tools.
AXISVM offers benefits such as cost reduction or design flexibility according to their project’s needs or budget,
by means of customizing computing capacity and add-on modules.
The STANDARD (S) version with limited capacity is suitable for modeling smaller structures.
BASIC PACKAGES

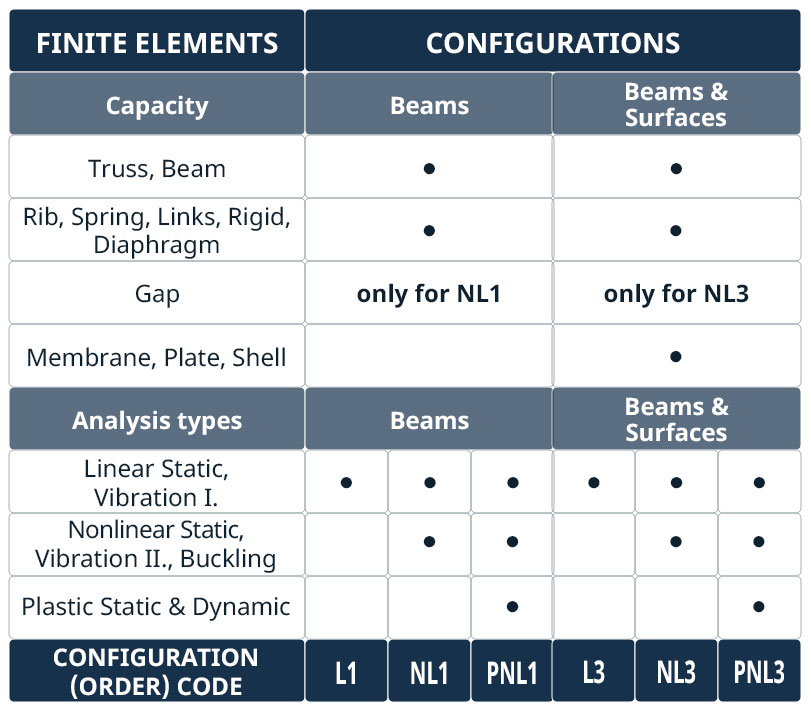

L package: For linear static and linear vibration analysis.
NL package: In addition to linear computational capabilities, nonlinear static, second-order vibration, and buckling analyses are also available. Some examples of cases these may be applied to are:
· tension-only or compression-only trusses
· nonlinear nodal, line, or surface supports
· contact modelling
· nonlinear end releases or edge hinges
· nonlinear static and dynamic analysis of structures with large displacements
· determination of buckling shapes, local buckling modes, and critical load multipliers
· vibration analysis considering the second-order effect due the axial forces.
PNL package: Analysis of beam, rib, and surface elements with nonlinear materials in the following cases:
· elastic-plastic and nonlinear-elastic material models
· analysis of plastic behaviour
· determination of permanent deformations

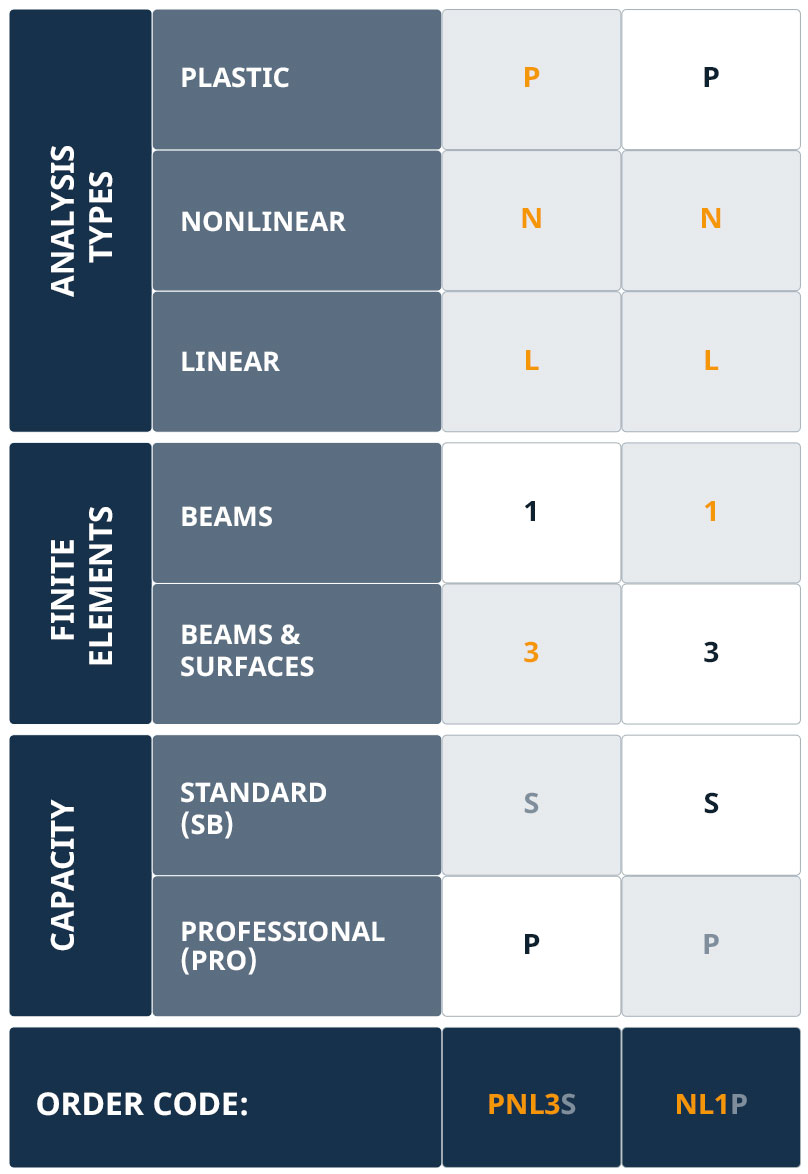

EXPLANATION TO ORDER CODE OF BASIC PACKAGES
STANDARD CAPACITY: 250 beam or 500 truss elements, 1 500 rib elements, 2 000 surfaces (membranes + plates + shells) and 20 000 solid elements (SOIL module)
MODULES
| REINFORCED CONCRETE STRUCTURES | Design Codes | |
|---|---|---|
| RC1 | Design of plates, shells and slab-on-grade foundations | EC, SIA, NTC |
| RC2 | Design of columns and beams | EC, SIA, NTC |
| RC3 | Punching and shear design of slabs | EC, SIA, NTC |
| RC4 | Design of pad and strip foundations | EC, SIA, NTC |
| RC5 | Beam elements with 7 degrees of freedom | EC, SIA, NTC |
| RC6 | Stress-strain analysis for sections | EC, SIA, NTC |
| RC8-B | Fire design of reinforced concrete columns and beams | EC, SIA, NTC |
| RC8-S | Fire design of reinforced concrete surfaces | EC, SIA, NTC |
| PS1 | Calculation of post-tensioned beams and surfaces | |
| STEEL STRUCTURES | ||
| SD1 | Modal response spectrum analysis | EC, SIA, NTC |
| SD8 | Fire design of steel members | EC, SIA |
| SD9 | Punching and shear design of slabs | EC, SIA |
| SC1 | Design of welded and bolted steel connections | EC, SIA |
| 7DOF | Beam elements with 7 degrees of freedom | EC, SIA |
| TIMBER STRUCTURES | ||
| TD1 | Design of timber elements | EC, SIA, NTC |
| TD8 | Fire design of timber elements | EC, SIA, NTC |
| TD9 | Cross-section optimization for timber elements | EC, SIA, NTC |
| XLM | Design of XLAM timber panels | EC |
| MASONRY WALLS | ||
| MD1 | Design of masonry walls | EC, SIA, NTC |
| SEISMIC ANALYSIS | ||
| SE1 | Modal response spectrum analysis | EC, SIA, NTC |
| SE2 | Pushover analysis | EC, NTC |
| DYNAMIC ANALYSIS | ||
| DYN | Dynamic analysis | |
| FFA | Footfall analysis | EC, SIA, NTC |
| METEOROLOGICAL LOADS | ||
| SWG | Automatic generation of snow and wind loads | EC, SIA,NTC |
| WIND | Wind load generation with digital wind tunnel simulation | EC, SIA |
| BIM CONNECTION MODULES | ||
| IFC | Bidirectional BIM connection (ARCHICAD, ALLPLAN, REVIT, TEKLA+ other BIM compatible software) | |
| REV | AXISVM – Revit bidirectional BIM connection (import/export of statical system) | |
| SAF | ARCHICAD, ALLPLAN, SCIA bidirectional BIM connection (import/export of statical system) | |
| TI | AXISVM – TEKLA STRUCTURES bidirectional BIM connection (import/export of statical system) | |
| ALP | AXISVM – ALLPLAN Rebar Detailing BIM connection (import/export of statical system) | |
| GENERAL PURPOSE MODULES | ||
| CFD | CFD (fluid flow) interface module | |
| IMP | Geometric imperfection based on buckling shapes | |
| SOIL | Modelling the interaction between soil and structure |
